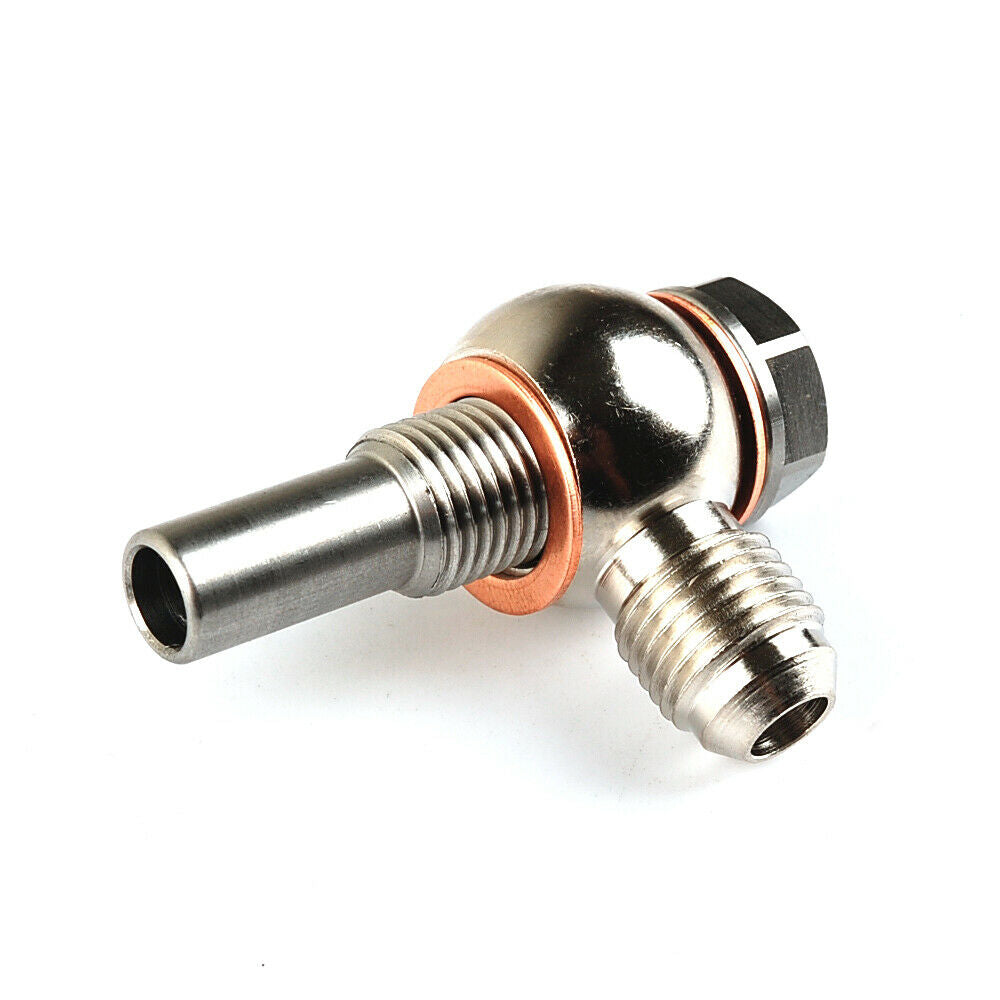

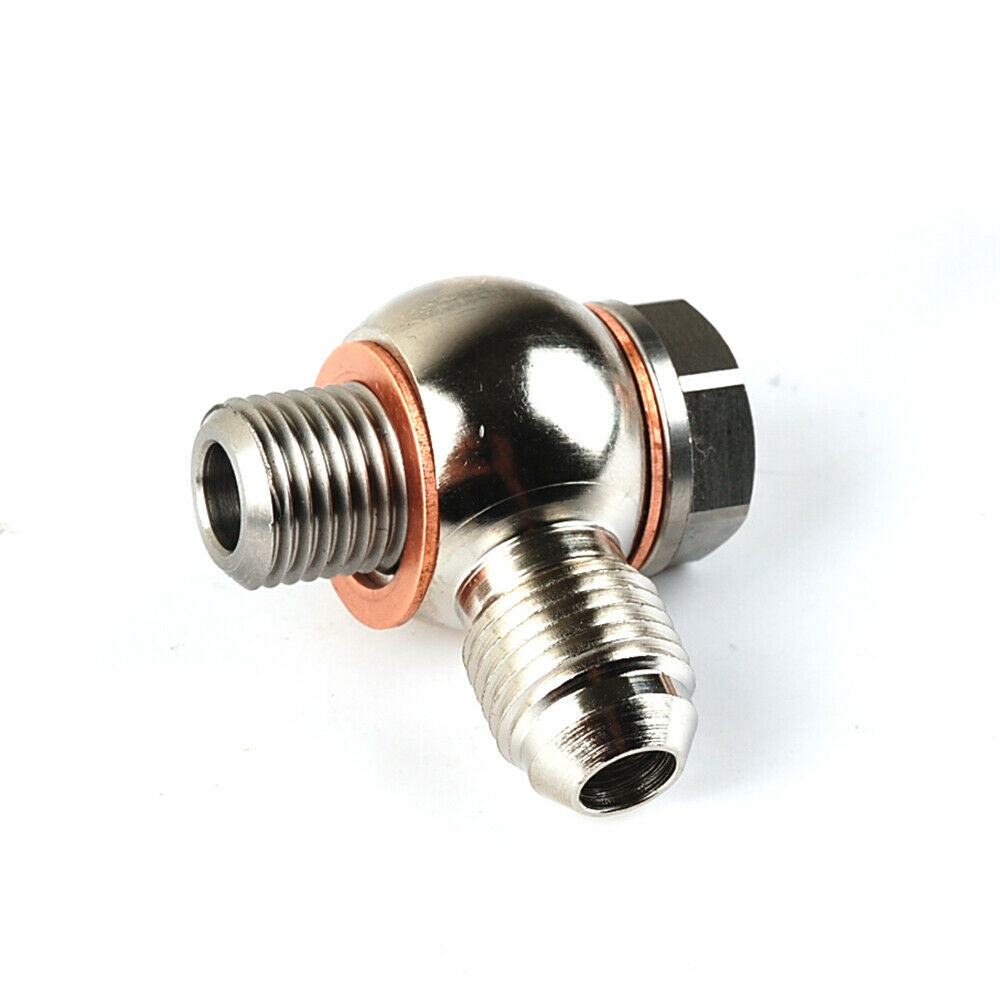

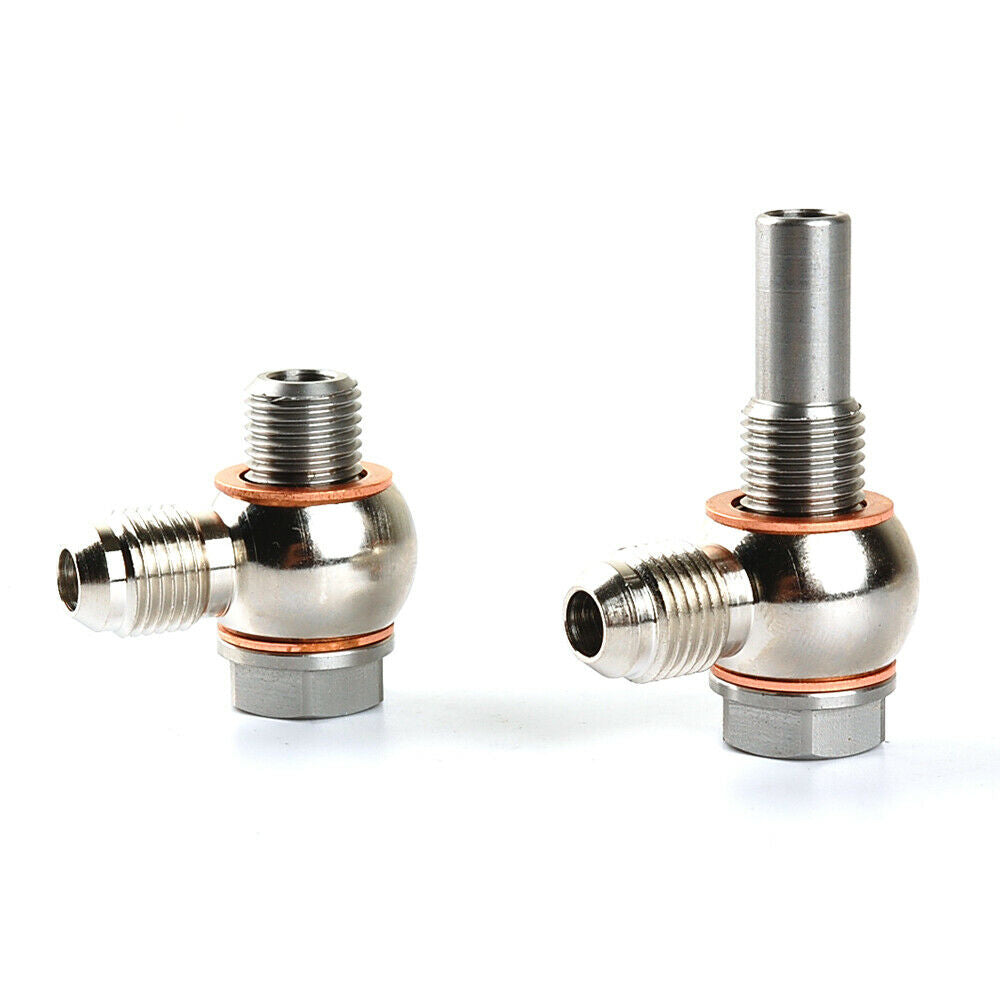

6AN 1/4NPSM 4L80E For GM Transmission Oil Cooler SS304 Banjo Bolt Fitting 1997~2010

APPLICATION


-1997 to 2010 SS 304 Banjo Bolt Kit 90Deg 6AN x 1/4NPS 4L80E for GM Transmission Oil Cooler
This auction is for one pair of -6 GM 4L80E transmission cooler banjo fittings.

People have been asking us to make some low profile fittings for the 4L80E so here they are. These banjo fittings are under 1 inch tall. The CNC banjo adapter is steel with Cr plated. Bolt is CNC SS304 stainless Steel and Come with copper washers.

-6 x 1/4NPS is the correct thread size for the GM 4L80E transmissions. These fittings fit 1997 to Mid 2010 cases. It is always best to remove the factory adapters and measure the outside diameter of the threads. They should be 0.521".　

In 1997 GM moved one of the cooler lines to the back of the transmission. The front adapter is short and the rear is the longer one with the tube. This is very crucial to the cooling circuit of the transmission. So at the request of a fellow e bayer we ran a batch. If you have a pre '97 unit the other GM transmission fittings in our store are what you need.

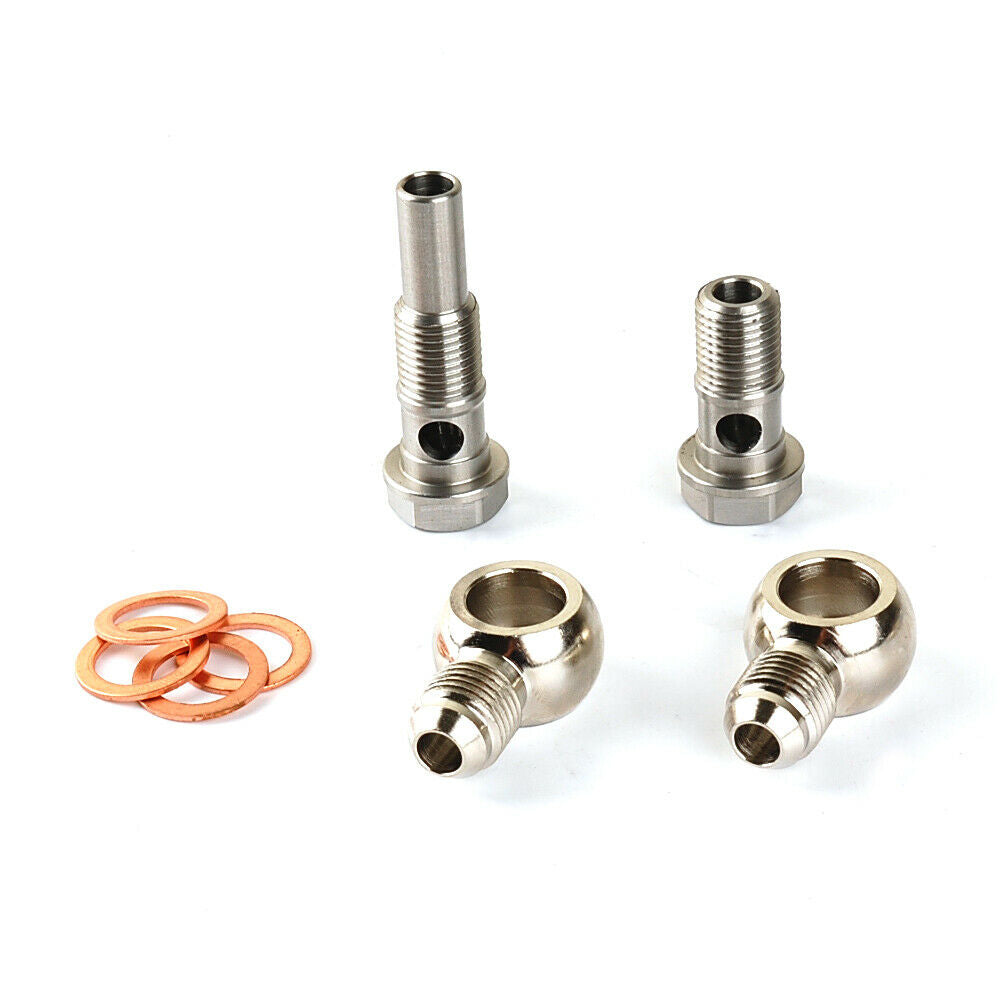

KIT INCLUDES 　
　
-1 x 1/4NPS SS304 Stainless Steel Banjo Bolt with 29mm length excluding head
-1 x 1/4NPS SS304 Stainless Steel Banjo Bolt with 49mm length excluding head
-2 x Steel M14 to 6AN Banjo Fittings with Nickel Plated
-4 x 14mm Copper Washers
　

CONDITION 　

-Brand New
